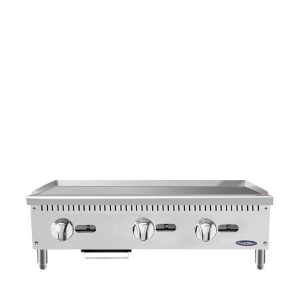

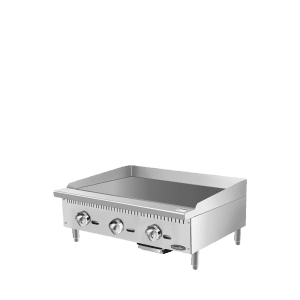

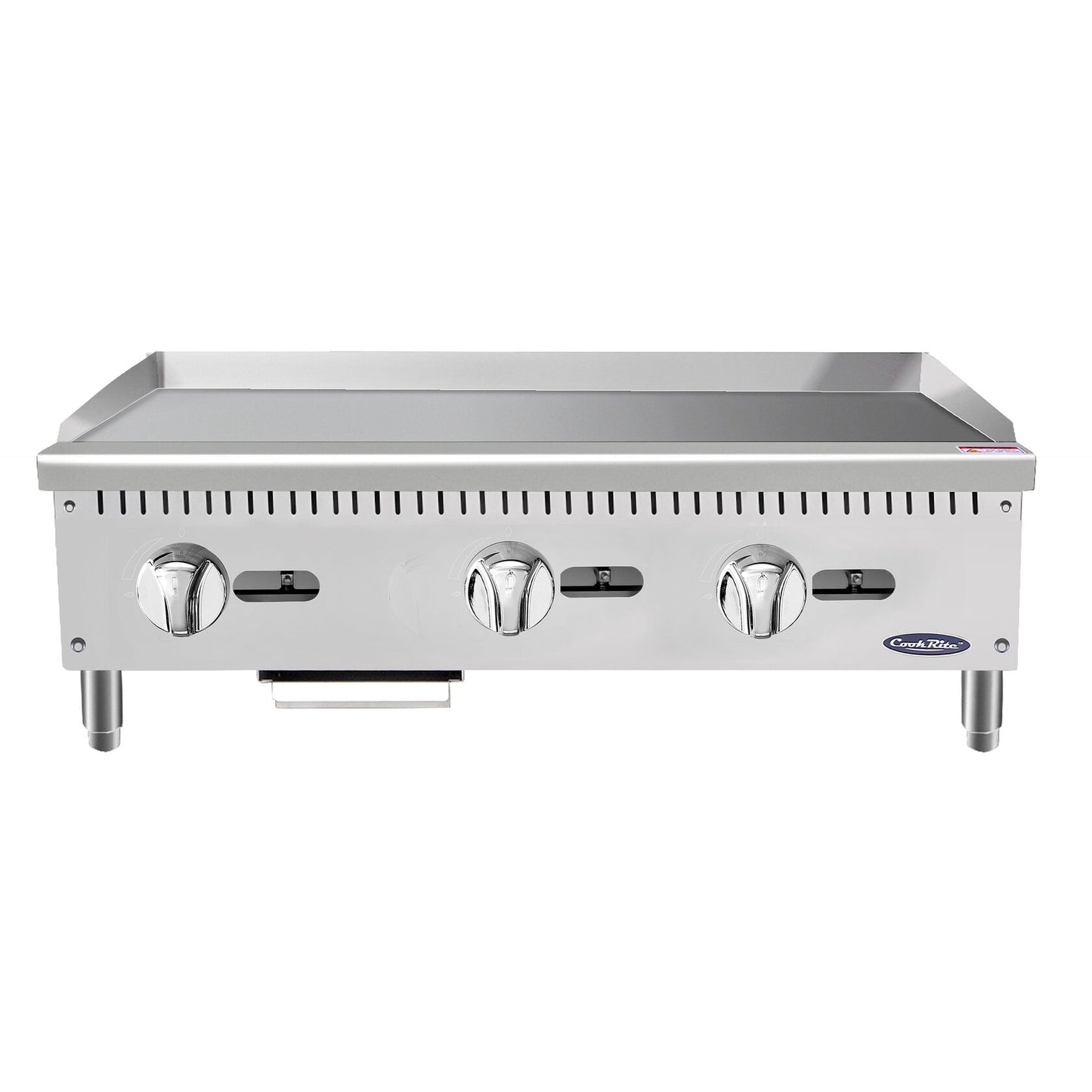

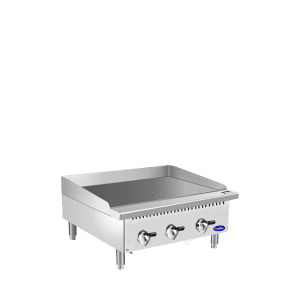

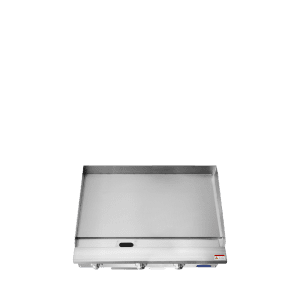

Atosa ATMG-36-NG 36-Inch Manual Gas Griddle, Natural Gas, 90,000 BTU, 3/4" Steel Plate
See current pricing, availability and checkout for this item at The Restaurant Warehouse, our main store.
See Price & Buy at The Restaurant WarehouseThe Atosa ATMG-36-NG is a 36" wide gas griddle with a 3/4" thick polished steel plate and manual controls for each 12" section. It runs on natural gas with 90,000 BTU in total.
At a Glance
- Size: 36" W x 28-3/5" D x 15-1/5" H (from the Atosa drawing)
- Work area: 35-7/10" x 19-9/10"
- Plate: 3/4" thick polished steel
- Gas: natural gas, 3 burners, 90,000 BTU total
- Controls: independent manual control for each 12" section
- Certifications: cETLus, ETL-Sanitation
- Warranty: 1 year parts and labor (US only)
Most units ship within one business day from our warehouse with free freight and free lift gate to Seattle restaurants and the lower 48.
A 36 Inch Griddle with Manual Controls
This 36 inch griddle has a 3/4" thick polished steel plate and three 30,000 BTU burners, one for each 12" section. Each section has its own manual control.
Is the ATMG-36-NG the Right Manual Griddle for Your Line?
The ATMG-36-NG is 36" wide with three 12" zones, each on its own 30,000 BTU burner and manual valve, for 90,000 BTU in total. Its 3/4" polished steel plate gives a 35-7/10" x 19-9/10" work area, about 710 sq in. It weighs 229 lb (280.9 lb shipped).
It is set up for natural gas, with a 4" W.C. regulator on a 3/4" NPT rear connection. On propane? Order the ATMG-36-LP instead, which has a 10" W.C. regulator and the same 90,000 BTU.
Manual or thermostatic? With manual valves, your cook sets the flame in each zone by hand. The ATTG-36-NG holds each zone at a set temperature instead, with a thicker 1" plate and 25,000 BTU burners (75,000 BTU total), at a higher price. The ATMG-36-NG has more burner output and is the lower-priced choice. One more zone: the ATMG-48-NG is 48" wide. Short on space: the ATMG-24-NG is 24" wide. Adding a grill next to it? The ATRC-36-NG (radiants) or ATCB-36 (lava rock) matches its 36" width and 15-1/5" height; both are 27-3/5" deep, 1" less than the griddle.
Good For
- Burger and sandwich shops: smash burgers on 30,000 BTU zones
- Breakfast counters: pancakes, eggs and bacon across three zones
- Taquerias: tortillas, carne asada and vegetables
- Busy lines on a budget: 90,000 BTU at a lower price than the thermostatic ATTG
Built for Daily Commercial Use
- Stainless steel exterior and interior

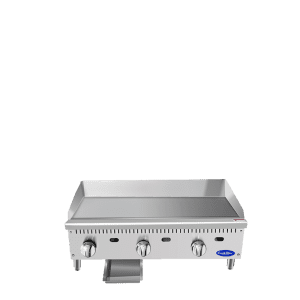

- Stainless steel grease drawer
- Heavy duty 3/4" thick polished steel griddle plate
- 30,000 BTU burner for each 12" section, with standby pilots
- Independent manual control for each 12" section
- Stainless steel legs standard
- 3/4" NPT rear gas connection and regulator standard
Pick the Right Size
| Model | Gas | Width | Burners | Total BTU |
|---|---|---|---|---|
| ATMG-24-NG | Natural gas | 24" | 2 | 60,000 |
| ATMG-24-LP | Propane | 24" | 2 | 60,000 |
| ATMG-36-NG (this model) | Natural gas | 36" | 3 | 90,000 |
| ATMG-36-LP | Propane | 36" | 3 | 90,000 |
| ATMG-48-NG | Natural gas | 48" | 4 | 120,000 |
| ATMG-48-LP | Propane | 48" | 4 | 120,000 |
Need propane? See the Atosa ATMG-36-LP. Want thermostatic controls? See the Atosa ATTG-36-NG.
Shop all commercial griddles, including natural gas and manual models.
Buy the Atosa ATMG-36-NG in Seattle
Encore Seattle sells the Atosa ATMG-36-NG new, not used, with the full manufacturer warranty. If you are pricing a commercial griddle in Seattle, it ships with free freight to Seattle restaurants on orders over $500, and we offer 1-3 day delivery from 12 distribution centers. We deliver to kitchens in Pioneer Square, Wallingford, the U District and West Seattle, and to restaurants across the lower 48.
Compare more options in our Commercial Griddles Seattle collection, or call or text +1 (206) 419-5801 with questions.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Countertop manual gas griddle |
| Gas type | Natural gas |
| Griddle plate | 3/4" thick polished steel |
| Work area | 35-7/10" x 19-9/10" |
| Burners | 3, 30,000 BTU each |
| Total BTU | 90,000 |
| Controls | Independent manual, one per 12" section |
| Gas pressure (regulator) | 4" W.C. |
| Gas connection | 3/4" NPT, rear, with regulator |
| Grease drawer | Stainless steel |
| Legs | Stainless steel |
| Construction | Stainless steel exterior and interior |
| Exterior dimensions | 36" W x 28-3/5" D x 15-1/5" H (from the Atosa drawing) |
| Net weight | 229 lb |
| Shipping weight | 280.9 lb |
| Warranty | 1 year parts and labor (US only) |
| Certifications | cETLus, ETL-Sanitation; conforms to NSF/ANSI 4 and ANSI Z83.11b; certified to CSA 1.8b |
Before You Order
- This is the natural gas model. Order the ATMG-36-LP for propane.
- Gas: 3/4" NPT rear connection with a regulator. Atosa lists the regulator at 4" W.C. for natural gas.
- Check your counter: the ATMG-36-NG is 36" wide, 28-3/5" deep and 15-1/5" tall, per the Atosa drawing. It weighs 229 lb, so use a counter or stand rated for that weight.
Atosa ATMG-36-NG FAQ
What size is the Atosa ATMG-36-NG?
36" wide, 28-3/5" deep and 15-1/5" tall, per the Atosa drawing, with a 35-7/10" x 19-9/10" work area. It weighs 229 lb, or 280.9 lb shipped.
How many BTU is the ATMG-36-NG?
90,000 BTU total from three 30,000 BTU burners, on natural gas. That is more than the 75,000 BTU thermostatic ATTG-36-NG.
How thick is the ATMG-36-NG griddle plate?
3/4" thick polished steel. The thermostatic ATTG-36-NG has a 1" plate.
Does the ATMG-36-NG have thermostatic controls?
No. Each of the three 12" sections has its own manual valve. For thermostats, see the ATTG-36-NG.
What gas connection does the ATMG-36-NG need?
A 3/4" NPT rear connection with a regulator set at 4" W.C. for natural gas. For propane, order the ATMG-36-LP.
What certifications does the ATMG-36-NG have?
cETLus, ETL-Sanitation; conforms to NSF/ANSI 4 and ANSI Z83.11b; certified to CSA 1.8b.
What warranty comes with the ATMG-36-NG?
1 year parts and labor (US only) on the ATMG-36-NG.
Should I choose the ATMG-36-NG or the thermostatic ATTG-36-NG?
Choose the ATMG-36-NG for more burner output (90,000 BTU vs. 75,000) and a lower price, if your cooks are comfortable setting the flame by hand. Choose the ATTG-36-NG if you want each zone held at a set temperature on a 1" plate. Both are 36" wide on natural gas.
Where can I buy the Atosa ATMG-36-NG in Seattle?
Right here at Encore Seattle. The ATMG-36-NG is new and ships to your restaurant with free freight on orders over $500.
How fast can I get the ATMG-36-NG in Seattle?
We offer 1-3 day delivery from 12 distribution centers. Call or text +1 (206) 419-5801 to check timing for your address.
