Atosa ATRC-24-NG 24-Inch Countertop Radiant Charbroiler, Natural Gas, 70,000 BTU
See current pricing, availability and checkout for this item at The Restaurant Warehouse, our main store.

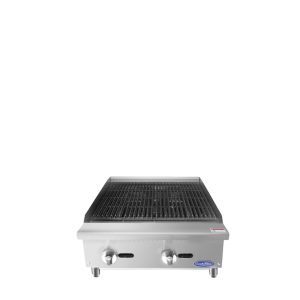

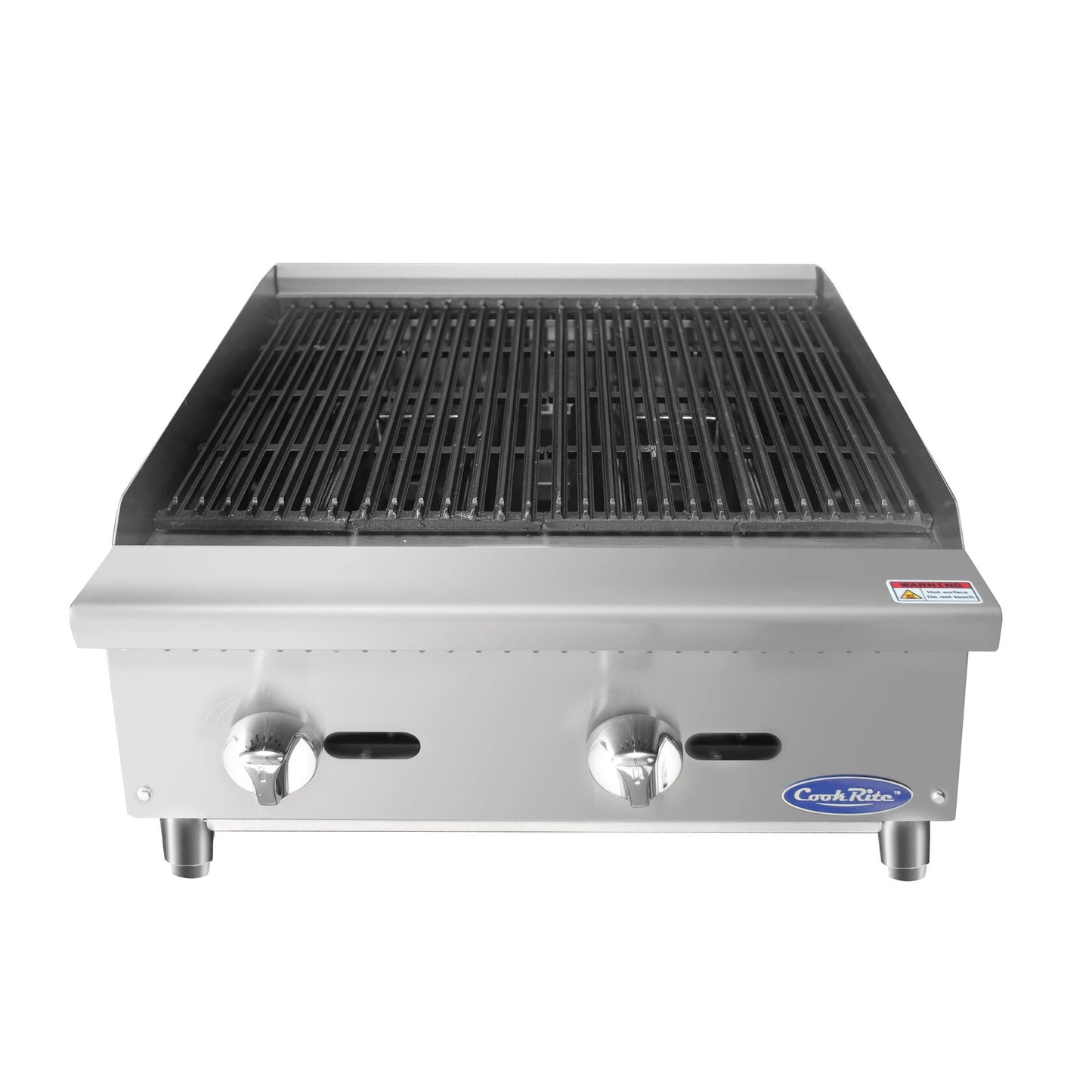

See Price & Buy at The Restaurant WarehouseThe Atosa ATRC-24-NG is a 24" radiant charbroiler on natural gas: two 12" zones, 35,000 BTU each, 70,000 BTU total.
A Grill for a Short Line
A Ballard bar grilling burgers and chicken sandwiches, or a cafe that wants grill marks on vegetables and paninis, rarely has room for more than two feet of broiler. This one gives about 483 sq in of cooking surface (23-9/10" x 20-1/5") and, at 116.8 lb, is the lightest charbroiler Atosa makes.
Radiants, Not Rock
Stainless radiants sit over each burner and spread the heat under the grates, so there are no lava briquettes to spread, clean or replace. If you want the rock-bed style, the ATCB-24 is the same size and BTU but 20.1 lb heavier and natural gas only.
Controls and Hookup
Each zone has its own manual valve and standby pilot. The cast iron grates flip over and set at more than one height. The 3/4" NPT gas inlet is at the back, with a regulator set to 4" W.C. for natural gas. Footprint is 24" W x 27-3/5" D x 15-1/5" H per the Atosa drawing.
Features
- 2 burners, 35,000 BTU each
- 70,000 BTU natural gas
- Reversible, multi-level cast iron grates
- Manual control and standby pilot per 12" zone
- 3/4" NPT rear inlet, 4" W.C. regulator
- Adjustable stainless legs
Related Models
Propane version: ATRC-24-LP. Three zones: ATRC-36-NG. Lava rock: ATCB-24. Matching 24" griddles: ATTG-24-NG and ATMG-24-NG.
Buying in Seattle
The ATRC-24-NG is new, with Atosa's 1-year parts and labor warranty (US only). It ships with free freight and free lift gate to Seattle restaurants on orders over $500, and we offer 1-3 day delivery from 12 distribution centers. Size: 24" W x 27-3/5" D x 15-1/5" H, 116.8 lb. Call or text +1 (206) 419-5801, or see all Seattle charbroilers.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Countertop radiant charbroiler |
| Gas type | Natural gas |
| Burners | 2, stainless steel, 35,000 BTU each, standby pilots |
| Total BTU | 70,000 |
| Controls | Independent manual, every 12" |
| Work area | 23-9/10" x 20-1/5" |
| Grates | Heavy-duty reversible cast iron, adjustable multi-level |
| Gas pressure (regulator) | 4" W.C. |
| Gas connection | 3/4" NPT, rear, with regulator |
| Legs | Adjustable stainless steel |
| Construction | Stainless steel exterior and interior |
| Exterior dimensions | 24" W x 27-3/5" D x 15-1/5" H (from the Atosa drawing) |
| Net weight | 116.8 lb |
| Shipping weight | 146.6 lb |
| Warranty | 1 year parts and labor (US only) |
| Certifications | cETLus, ETL-Sanitation; conforms to NSF/ANSI 4 and ANSI Z83.11b; certified to CSA 1.8b |
ATRC-24-NG Questions
How many BTU?
70,000 from two 35,000 BTU burners.
Radiant or lava rock?
Radiant. The lava rock model is the ATCB-24.
What gas connection?
3/4" NPT at the rear, regulator at 4" W.C.
How heavy is it?
116.8 lb, 146.6 lb shipped.
How fast can I get it in Seattle?
1-3 days from 12 distribution centers. Call or text +1 (206) 419-5801.
