Atosa AEC-1021E Electric Smart Touch Combi Oven, 10 Full Sheet Pan Racks, 208/240V 3 Phase
See current pricing, availability and checkout for this item at The Restaurant Warehouse, our main store.
See Price & Buy at The Restaurant WarehouseThe Atosa AEC-1021E is the largest Smart Touch combi: ten 18" x 26" sheets or twenty hotel pans, up to 650 lb a load.
High-Volume Kitchens
University dining, hospital food service, central kitchens supplying several Seattle locations and large banquet operations need this kind of batch size. Shelves carry 65 lb each.
Plan the Electrical First
It is the heaviest electrical job in the line: Atosa rates it at 22.5 - 28.8 kW drawing 62/70 A, which means an 80/90 A breaker on 208/240V 3 phase and a 4 x 4 AWG cord. Have your electrician confirm panel capacity before you order.
Size and Install
36" W x 42-1/2" D x 48-1/2" H and 436 lb, the same footprint as the AEC-0621E. Clearances, hood, water quality and drain rules follow the AEC manual: 6" per side, 28" from hot equipment at the back, water at or below 120 mg/L hardness and 90°F, and a drain under 60" with a 1" air gap.
Features
- Ten full sheets or twenty hotel pans
- 650 lb load capacity
- ENERGY STAR listed
- Programmable multi-stage cooking
- 6 mode automatic wash
- 80/90 A breaker
Related Models

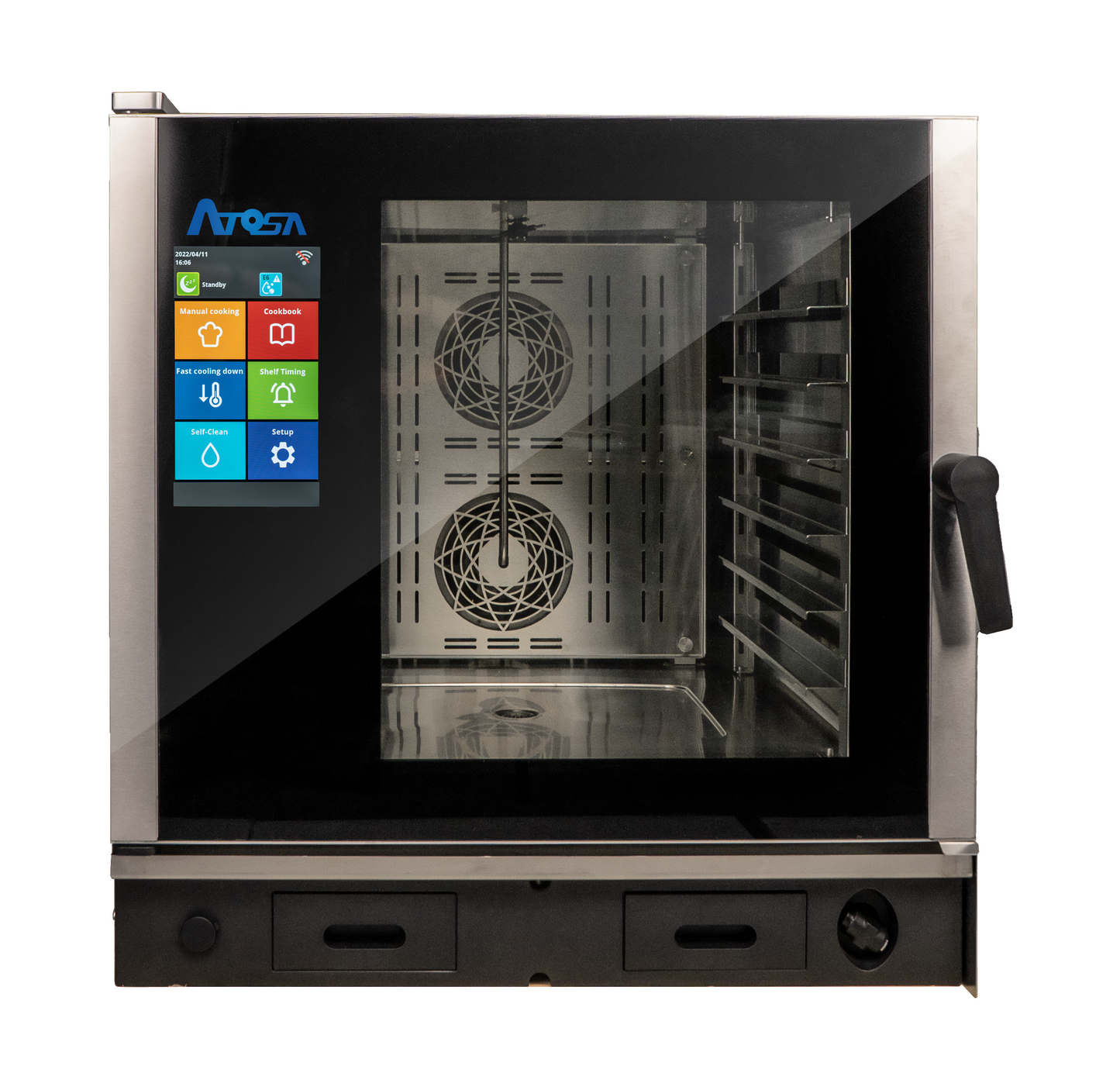

Six full-size slots: AEC-0621E. Half-size 10-slot: AEC-1011E. Brightener: AT202. Descaler: ATD1.
Buying in Seattle
The AEC-1021E is new, with Atosa's 1-year parts and labor warranty (US only). It ships with free freight and free lift gate to Seattle restaurants on orders over $500, and we offer 1-3 day delivery from 12 distribution centers. Size: 36" W x 42-1/2" D x 48-1/2" H, 436 lb. Call or text +1 (206) 419-5801, or see all Seattle combi ovens.
Specifications
| Spec | Detail |
|---|---|
| Type | Electric Smart Touch combi oven |
| Pan capacity | 10 x 18" x 26" or 20 x 12" x 20" |
| Rack slots | 10 |
| Weight capacity | 650 lb total, 65 lb per shelf |
| Volts / phase (as Atosa lists) | 208/240V, 3 phase |
| Amp draw, min/max (as Atosa lists) | 62/70 |
| Breaker, A (as Atosa lists) | 80/90 |
| kW (as Atosa lists) | 22.5 - 28.8 |
| Power cord (as Atosa lists) | SJTOW 4 x 4 AWG FT-1 VW-1 |
| Water inlet | 5/16" OD push-to-connect |
| Water pressure | 30 to 90 PSI |
| Drain | 1" ID / 1-1/2" OD |
| Temperature range (per Atosa manual) | 86°F to 500°F |
| Door | Triple pane tempered glass |
| Exterior dimensions | 36" W x 42-1/2" D x 48-1/2" H |
| Weight | 436 lb |
| Warranty | 1 year parts and labor |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR |
AEC-1021E Questions
What pans fit?
Ten 18" x 26" or twenty 12" x 20".
What breaker does it need?
80/90 A on 208/240V 3 phase, per Atosa.
How much can it hold?
650 lb, 65 lb per shelf.
How heavy is it?
436 lb.
How fast can I get it in Seattle?
1-3 days from 12 distribution centers. Call or text +1 (206) 419-5801.
